Properties :
1. 100% recyclable product meets with the environmental protection without
adding any wood flour or sawdust.
2. 100% waterproof.
3. Suitable to be used for the activities indoor and outdoor.
4. The component with high quality features that the density is similar to the wood
(D:0.6~0.7 g/cm3) and light.
5. The processing is similar to the general timber, e.g.: shave, saw, trim, nail, drill,
wash and grind.
6. Strong rigidity and durability. (Similar to teak)
7. Thermal process is easily executed to be blended to have various shapes of the
materials.
Applications:
1. Furnishings and House fittings
2. Outdoor side-walk, Fence and Railing.
3. Building block.
4. Bathroom and humidity areas.
5. For tooling industrial building molds.
6. Wooden crafts.
7. Gardening and Horticulture.
8. Shoe industry.
9. Could be used at frigid and torrid zones. Environmental temperature is between
-30°C~90°C
Using restrictions:
1.WINTwood® is made by special polymer, so the environmental temperature is
limited to be -30°C~90°C
2. WINTwood® is anti-acid, anti-alkali and fits for the surfactant and detergent.
Forbidden organic solvent, such as: benzene, toluene, xylene and corrosion
liquor.
3. Non-fire retardant (such as timber), away from flame.
Why is WINTWood !
1. WINTwood is the most like real wood with the feel of the innovative material
in the WPC field.
2. WINTwood made from 100% pure plastics; conventional WPC
(wood plastic composite) made of wood power and plastic. There is no
thermal shock, water permeability appearance after long-term application.
3. WINTwood is produced by compression foaming technology, which could be
easier to tailor to variety density comparing to variety real wood. There is
no way by conventional WPC..
4. WINTwood could be composed of complete wood vein transparently with
realistic texture; but not conventional WPC could be.
5. WINTwood is a solid wood which could be post-processed into a variety of
wood products with broad range application; but not that conventional WPC
made by extrusion die which constrain the profile of products.
6. The density of WINTwood is lighter than water, which is suitable for using in
a water environment.
7.WINTwood with anti-slippage characteristics (TPE’s); but not like
the conventional WPC(PE/PP/PVC/PS )is slippery in water surroundings

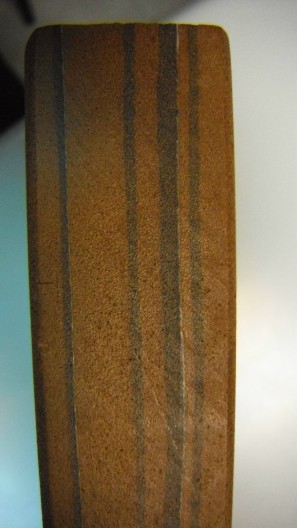

Picture.1
Picture.2
WINTWood Specification
|
Test Item |
Conventional WPC |
Conventional WPC |
WINTWood |
FRP WINTWood-1 |
FRP WINTWood-2 |
FRP WINTWood-3 |
Carbon Reinforcement WINTWood |
Fir |
Teak |
|
Material |
HDPE/Wood Fiber |
HDPE/Wood Fiber |
TPE |
TPE/FRP FRP 2 Layers |
TPE/FRP FRP4 Layers |
TPE/FRP FRP 6 Layers |
TPE/Carbon Reinforcement Plastics Carbon 2 Layers |
Wood |
Wood |
|
Shore Hardness Shore D |
-- |
-- |
55.4 |
45.2 |
35.75 |
40.8 |
56.4 |
42~52 |
52~56 |
|
Density Hardness Shore D |
1.3 |
0.8~1.0 |
0.65 |
0.61 |
0.62 |
0.64 |
0.65 |
0.49 |
0.58 |
|
Warpage Strength (ASTM D790 )Kgf/cm2 |
210 |
140 |
150 |
374 |
434 |
619 |
391 |
650 |
597 |
|
Bend Resiliency (ASTM D790 kgf/cm2) |
12,000 |
6,000 |
11,000 |
15,536 |
25,363 |
56,851 |
70,495 |
105,224 |
123,645 |
|
Screw binding strenght (ASTM D1037) kgf |
100 |
300 |
63 |
-- |
-- |
-- |
-- |
-- |
-- |
|
Water Permeability ratio (ASTM D570)% |
3 |
1.5 |
0.14 |
-- |
-- |
-- |
-- |
-- |
-- |
|
Anti-pressure (ASTM D695)kgf/cm2 |
-- |
170 |
384 |
-- |
-- |
-- |
-- |
-- |
-- |
|
Impact Strenght (ASTM D256)J/m |
-- |
-- |
14.91 |
-- |
-- |
-- |
-- |
-- |
-- |
|
Tensile Strength (ASTM D638)kgf/cm2 |
-- |
-- |
190 |
-- |
-- |
-- |
-- |
-- |
-- |
|
Elongation (ASTM D638 )% |
-- |
-- |
7.1 |
-- |
-- |
-- |
-- |
-- |
-- |
|
HDT (ASTM D648) ℃ |
-- |
-- |
75.2 (load:1821 kpa) |
-- |
-- |
-- |
-- |
-- |
-- |
|
